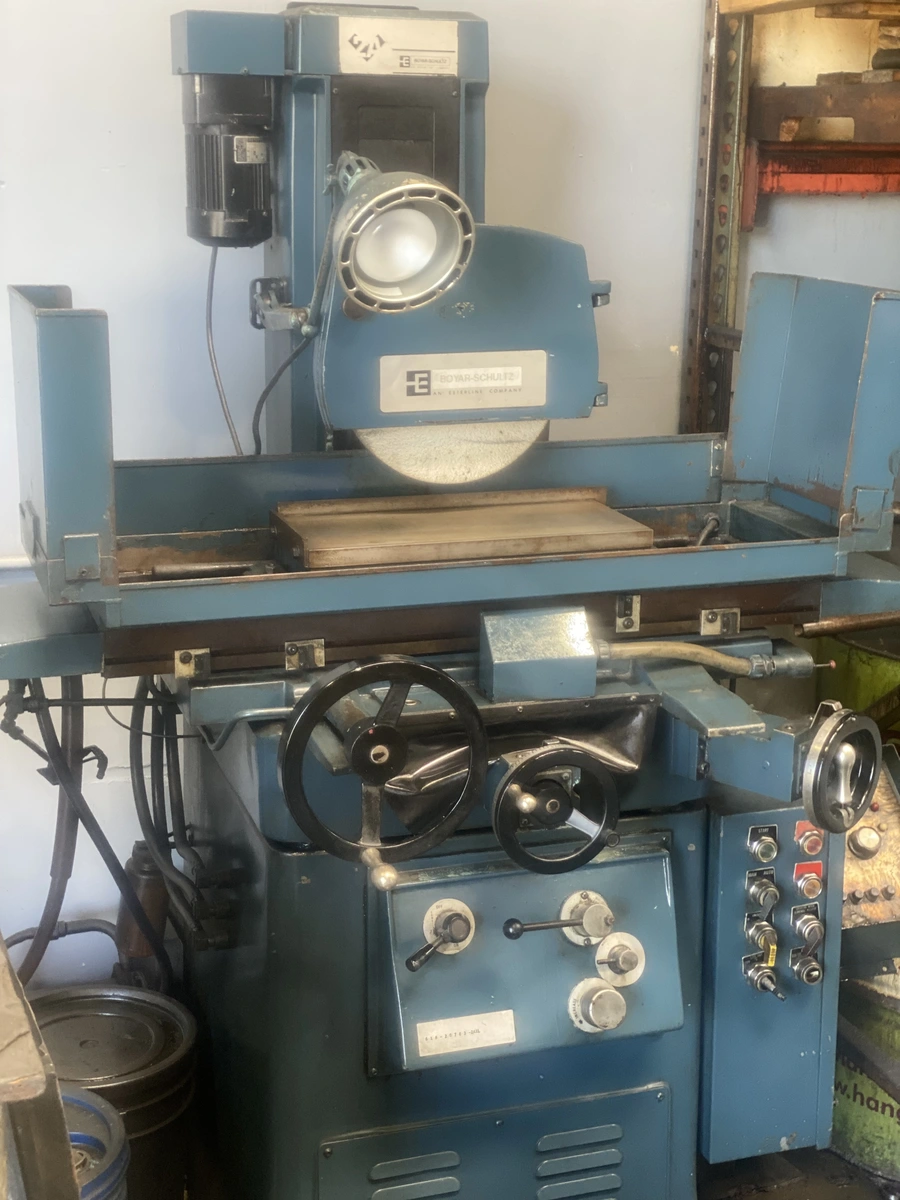

Boyar Schultz 2AXL818 8" x 18" Surface Grinder
Reciprocating Surface GrindersBoyar Schultz 2AXL818 8" x 18" Surface Grinder
Table-W | 8" |
Table-L | 18" |
Horz/Vert | Horz |
Power | 1 hp |
Grinding Wheel Width | 0.625" |
Grinding Wheel Dia. | 7" |
Dimensions | 6' X 4'2" |
Weight | 2300 lbs |
Table Working Surface, W x L........... 8" x 18"
Grinding Width Capacity, Maximum....... 8"
Grinding Length Capacity, Maximum...... 18"
Height Under 7" Grinding Wheel To Table 13.5"
Table Longitudinal Travel.............. 21"
Table Cross Travel..................... 9.25"
Table Longitudinal Feeds, Range........ 0 to 70 FPM
Table Crossfeeds, Range................ 0 to 3/8 IPR
Grinding Wheel Diameter, Standard...... 7"
Grinding Wheel Width, Standard......... 0.625"
Grinding Wheel Hole Diameter........... 3"
Downfeed Handwheel Graduations......... .00001"
Crossfeed Handwheel Graduations........ .001"
Grinding Wheel Spindle Motor........... 1 HP/3450 RPM
Electrical System...................... 208-220-440/3/60
Floor Space Required, W x D............ 6' x 4'2"
Weight, Approximately.................. 2300 LBS
8" x 18" Walker Electro-Magnetic Chuck w/Controls
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
